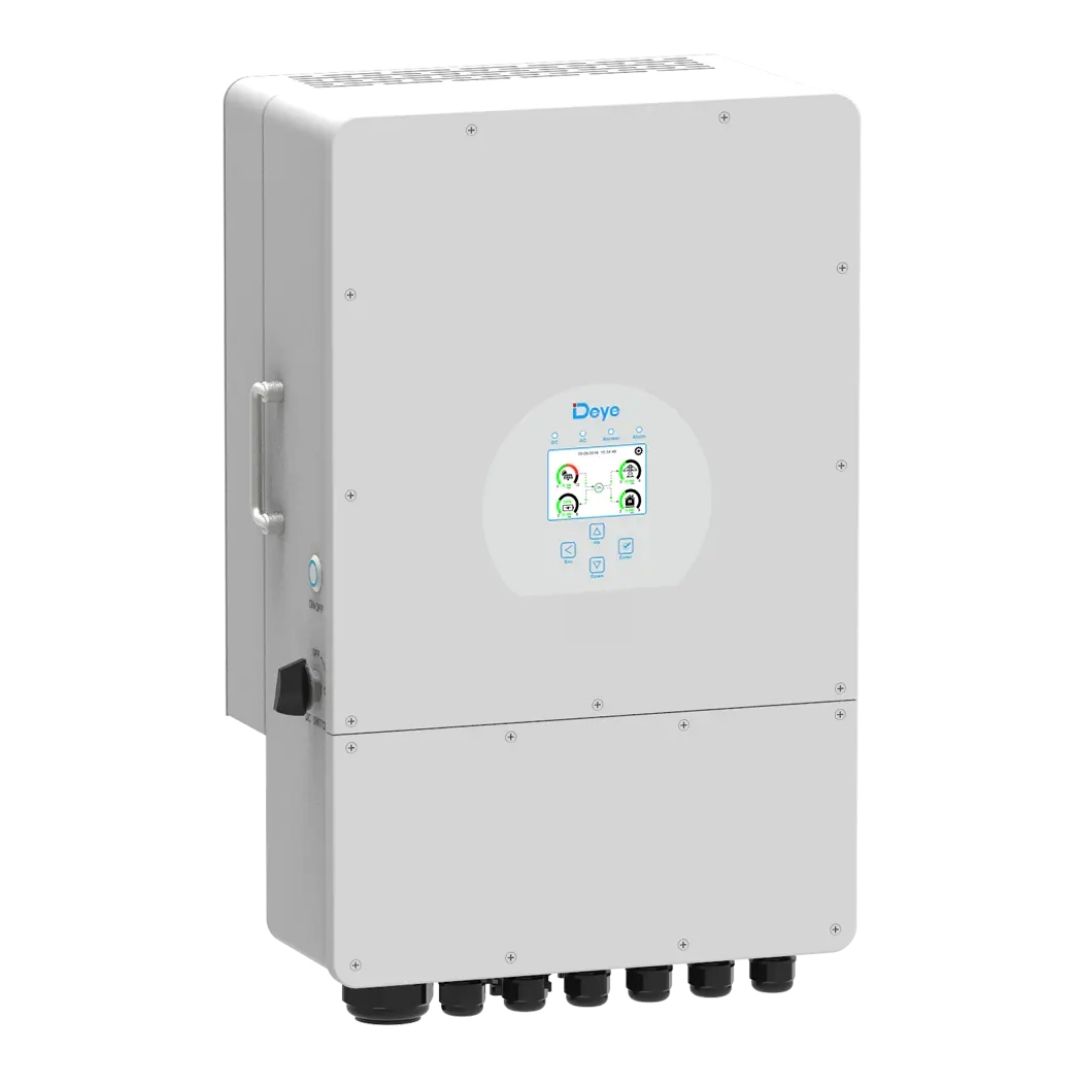

Deye 12kW Hybrid Inverter

Description

Deye 12kW Hybrid Inverter

The Deye 12Kw hybrid inverter for sale in South Africa is a great solution to loadshedding and a great start to controlling your own electricity usage. This inverter is an on and off-grid inverter with many luxurious and safety features meaning that you could use this inverter on a farm with no connection to electricity, you could use the 12kw Deye inverter in your home and office as well if you are looking to have no interruptions to power supply.

Features:

• Colour touch screen LCD display
• IP65 rated
• Dual MPPT
• 100% unbalanced output, each phase max. output up to 50% rated power
• High PV input voltage range
• 5-Year warranty
• Low noise
• Model SUN-12K-SG04LP3

AC Specifications:

• Rated power: 12 000 W
• Maximum output power: 13 200 W
• Peak power (off-grid): 2x rated power for 10 s
• AC output rated current: 18 A
• Maximum AC output current: 27 A
• Maximum AC continuous passthrough: 50 A
• Output frequency: 50 / 60 Hz
• Output Voltage: 230 Vac per single phase
• Current harmonic distortion: THD < 3 % (Linear load < 1.5 %)
• Maximum efficiency: 97.6 %

PV Specifications:

• Maximum PV input power: 15 600 W
• PV input voltage range: 150 V to 800 V (ideal 550 V)
• MPPT voltage range: 200 V to 650 V
• Start up voltage: 160 V
• Number of MPPTs: 2
• Number of PV strings per MPPT tracker: 2 + 1
• Maximum PV input current: 26 A + 13 A

Battery Specifications:

• Battery voltage range: 40 V to 60 V
• Battery type supported: Lead-acid or Lithium-ion (LiFePO4 / NMC)
• Maximum charging current: 240 A
• Maximum discharge current capability: 240 A
• Lead-acid battery charge type: 3-stage
• External temperature sensor: Optional
• BMS communication: Yes. Communication with The Sun Pays Lithium batteries are recommended. Consult battery supplier for compatibility.

Safety Features:

• PV input lightning protection
• Anti-islanding protection
• PV string input reverse polarity protection
• Insulation resistor detection
• Residual current monitoring unit
• Output over current protection
• Output shorted protection
• Output over-voltage protection
• DC surge protection: Type II
• AC surge protection: Type II

General Specifications:

• Operating temperature range: -25 °C to 60 °C, > 45 °C Derating
• Cooling: Smart cooling
• Noise: < 30 dB
• Communication with BMS: RS485 & CAN
• Weight: 36.8 kg
• Size: 422 x 658 x 281 mm
• Ingress protection: IP65
• Warranty: 5 years

Expansion:

• Frequency droop control
• Maximum 16pcs parallel

Installation:

A competent, qualified professional installer is required for the installation of all electrical systems.

What is in the box:

• Wifi dongle
• User manual
• Network cable, intended for battery communication
• External lead-acid battery temperature sensor
• 3x CTs
• 3x MC4 connector sets
• 4x Expansion bolts
• Mounting plate
