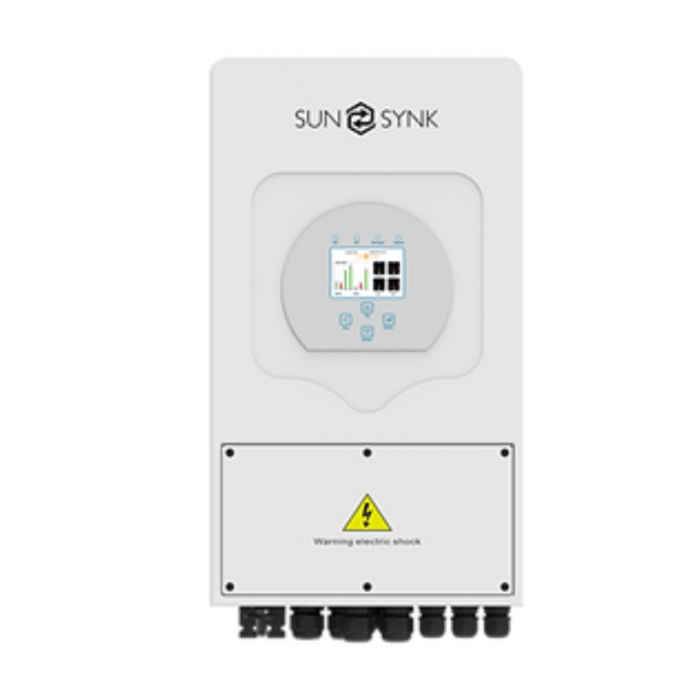

Sunsynk 12Kw Hybrid Inverter

The Sunsynk 12Kw inverter is a three phase hybrid Inverter thats ideal inverter for managing power flow from multiple sources such as solar, main electrical grid, and generator for residential or commercial purposes.

The Sunsynk Three-Phase Hybrid Storage Inverters are highly efficient power management tools for three-phase grid applications. These inverters allow the user to control power flow from multiple sources such as solar, main electrical grids, and generators, and effectively store and deliver electric power to your applications.

Product Features

• Maximum charging /discharging current of 240A
• Support storing energy from diesel generator
• Compatible with most Lithium-ion batteries and Lead Acid batteries
• Mobile App for monitoring
• Up to 16 units can be paralleled
• Essential and Non-Essential Loads outputs
• Push-in terminal for PV connection

Sunsynk 12kW Hybrid Inverter Product Specifications

• Weight: 45 kg
• Rated Power: 12,000 W
• Min PPT Voltage: 160 V
• Max PPT Voltage: 800 V
• DC Startup Voltage: 160 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 1,000 V
• Max DC Power: 15,000 W
• Max AC Power (5 Minutes): 13,200 W
• Surge AC Power (1 Second): 24,000 W
• Max DC Current: 37.5 A
• Max DC Inputs: 3
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 0
• Euro Efficiency: 99.9 %
• Transformer: None
• MPPT Quantity : 2
• Has Integrated DC Switch: Yes
• Warranty: 5 years
