Functions
Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years

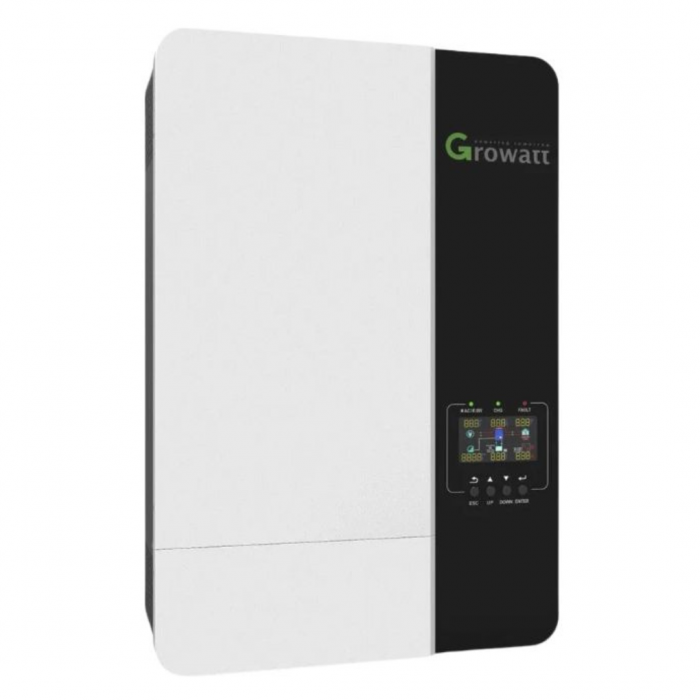

Growatt SPF 5000 ES 5kW 48V Hybrid Inverter
R13,500.00
Description

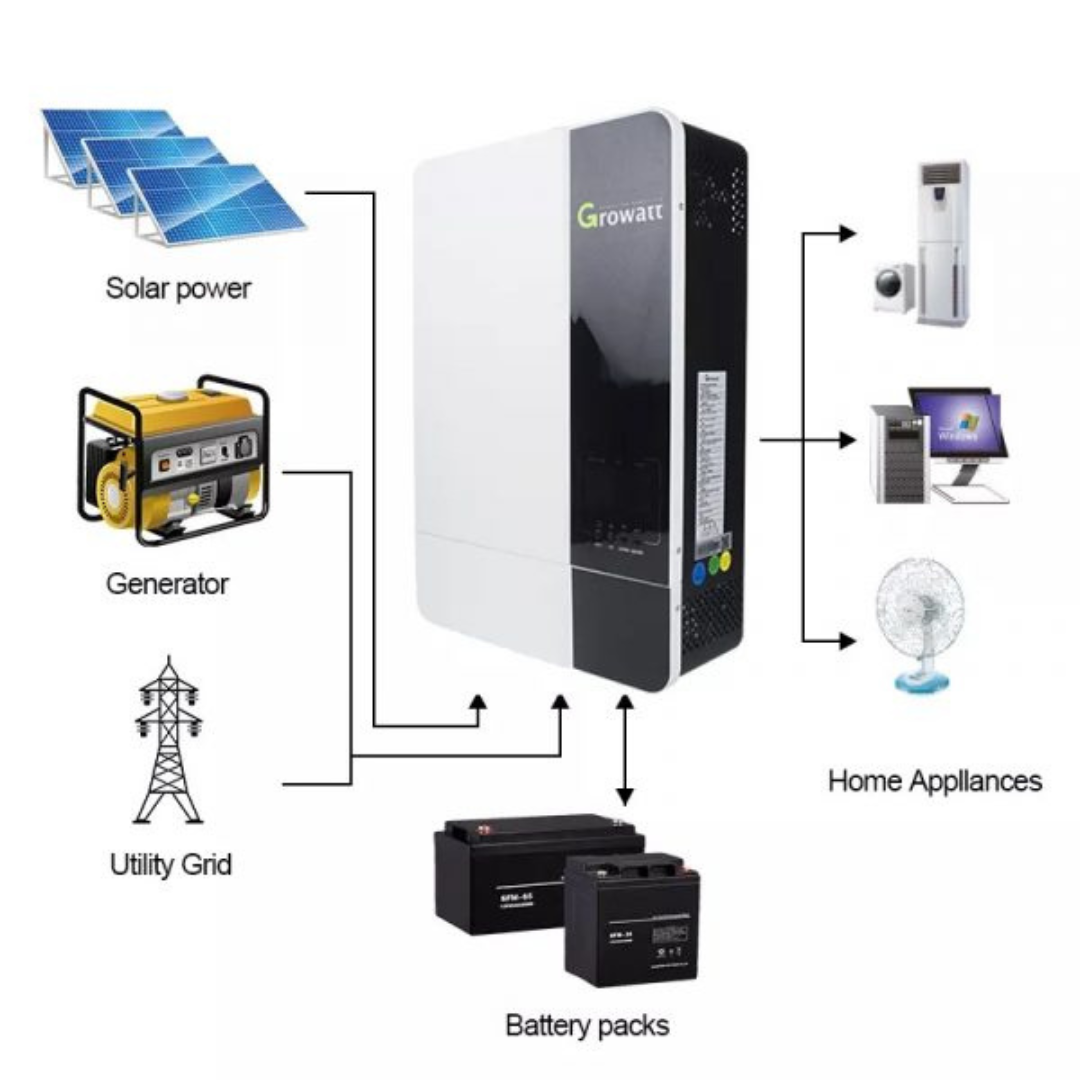

This device is a versatile off-grid solar inverter that combines an MPPT solar charge controller, high-frequency pure sine wave inverter, and UPS function module into a single unit, making it ideal for off-grid backup power and self-consumption applications. The inverter can function with or without batteries, but requires additional components such as PV modules, generators, or utility grids to operate fully. A plug-and-play WiFi/GPRS module can be added to enable remote monitoring of the PV system via mobile phone or website. This inverter also has a parallel operation feature that allows up to six units to be connected (only when batteries are connected).
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
- Warranty: 2 years
General Specifications
- Module: SPF 5000 ES.
- Battery voltage: 48vDC.
- Battery type: Lithium/Lead-acid.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg.
